Sanding Belt Skiving Machine

ABR-ASMGS-7A is our newly designed skiving machine, primarily used for sanding belt joint processing. It integrates three functions: abrasive belt edge scuffing, glue coating, and splicing tape application.

This upgraded model significantly enhances skiving performance in several key areas, such as working speed, skiving unit adjustments, curing speed, and splicing tape application. All these improvements bring the machine to a new level of efficiency.

Coated abrasive converters will benefit greatly from the performance upgrades offered by this new machine.

For wide sanding belts, we’ve added a small guiding table to the machine.
The continuous feeding system features a high-quality imported conveyor belt.
Adjustable feeding speed: up to 10m/min.
A foldable support roller table is included to hold the material.
Standard skiving heads include:

1. Opposite sanding belt skiving unit
2. Diamond cup wheel skiving unit
3. Diamond cup wheel skiving unit
4. Parallel sanding belt skiving unit
5. Clean & strip disc / Wire brush skiving unit (these two grinding tools are easily interchangeable)
6. 45° sanding belt skiving unit
7. Opposite diamond cup wheel skiving unit

(Other types can be customized.)

All skiving units are upgraded with a new design, offering higher precision and easier operation.
Each skiving head can be easily adjusted to meet your requirements for scuffing depth, width, and angle.
Glue coating system: Both spray and roller coating options are available.
Heating unit length: 2.8m (custom sizes available).
Temperature range in heating unit: 60-100°C.
Hot air circulation system: The speed and volume of hot air can be adjusted.

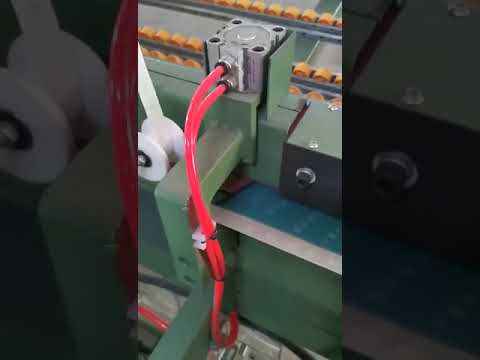

Advanced splicing tape pasting device, capable of applying tapes up to 25mm wide.
Digital setting for tape length.
Option to paste every abrasive edge or every other edge (for long sanding belts).
Flexible tape applicator adjustment.
